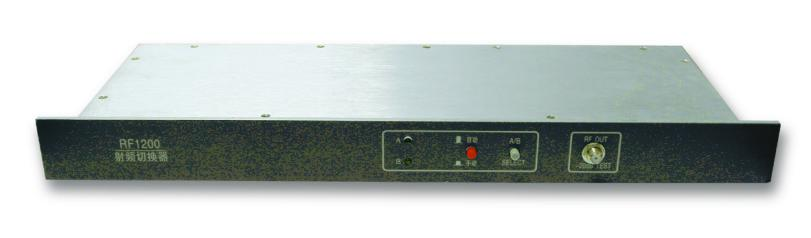

RF 1200 Switch
RF1200 RF switch module with two path RF signal input ,one path RF signal output are widely used in the 1550 nm, 1310 nm ring-network ...
RF 1200 Switch
|
No |
Item |
Unit |
Parameters |
|
1 |
Frequency range |
MHz |
５～862/1000MHz |
|
2 |
Input reflect loss |
dB |
≥16 |
|
3 |
Output reflect loss |
dB |
≥16 |
|
4 |
Isolation degree |
dB |
≥70 |
|
5 |
Isolation degree of in and out ports |
dB |
≥70 |
|
6 |
Insertion loss |
dB |
≤2.0 |
|
7 |
Flatness |
dB |
±0.75 |
|
8 |
RF switching time |
ms |
＜20 |
|
9 |
RF input impedance |
Ω |
75 |
|
10 |
Input level range |
dBuV |
96～106（59 paths ＰＡＬanalog RF signal） |
|
11 |
Power supply |
V |
AC 220V 50Hz |
|
12 |
Operating temperature |
℃ |
-25～+65 |
|
13 |
Storage temperature |
℃ |
-30～+70 |
